home / Products / Face Recognition Temperature / Face Recognition Temperature-8 inch Screen / Face recognition temperature measurement terminal 8 inch
  • Face recognition temperature measurement terminal 8 inch
  • Face recognition temperature measurement terminal 8 inch
  • Face recognition temperature measurement terminal 8 inch
  • Face recognition temperature measurement terminal 8 inch
  • Face recognition temperature measurement terminal 8 inch
Face recognition temperature measurement terminal 8 inch
Face recognition temperature measurement terminal 8 inch
Face recognition temperature measurement terminal 8 inch
Face recognition temperature measurement terminal 8 inch
Face recognition temperature measurement terminal 8 inch
Face recognition temperature measurement terminal 8 inch

Face recognition temperature measurement terminal 8 inch

  • Powered by MIPS
  • integrated  with Heimann Sensor
  • Temperature measurement range: 10℃ ~ 42℃.
  • Binocular wide dynamic camerav with 2million pixels.
  • CPU: RK3288 qua-core(optional RK3399 six-core, MSM8953 eight-core).
  • QR Code Questionnaire supported
  • Private Cloud Supported.
  • Software customized, OEM & ODM
  • Cloud account for Free link:  MIPS up the Air


  • Face recognition temperature measurement terminal 8 inch
    Access Control System
    EU Green Pass QR Code Scanner
    EU green pass reader QR code scanner kiosk , Body face temperature scanner kiosk with ID card authentication system

    Hardware & software to working with EU green pass scanner to scan people QR code and option to have temperature/ mask detection, access control, takes pictures etc


    Asianda smart facial recognition temperature with ID card reader HD camera for school door lock access control system



  • Face recognition temperature measurement terminal 8 inch
    Powered by MIPS
    Face Temperature Scanner

    The new generation face temperature scanner powered by the MIPS can be much more easy for anyone who do not need have any tech background, learn and use in practise.
    YXD-F8, with 8-inch IPS HD LCD display screen, our face temperature screening system can be used for the gate control, temperature reader, or the temperature detector device. Support mid-range temperature measurement and real-time warning of high Temperature,support binocular live detection.
    Equipped with Belgium Melexis Termopile Sensors ,which is of high accuracy ,of temperature measurement range 10-42 ℃, of high accuracy ± 0.3 ℃,can do quick temperature scan  .




  • Face recognition temperature measurement terminal 8 inch
    Multi-interface
    Facial Temperature Access Control
    Face recognition temperature measurement terminal interface for relay, RS485, power supply, RJ45 and  DC 12V output, with 9 interfaces ports in totally  , fully meet your every requirements.
    YXD-F8 can be used for the entrance access, only the one with normal temperature and its face information matching with the registered informations in the database ,the gate will open,  on the contrary ,as long as one of the two conditions is not met ,the gate will not open, and will give the alarm.

  • Face recognition temperature measurement terminal 8 inch

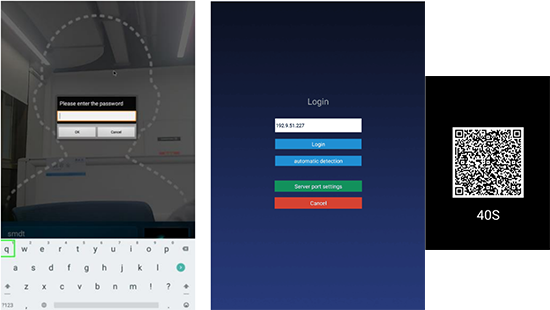

    Scanner the QR Code
    New APK Integrated with Questionnaire

    The newly added questionnaire survey function is to jump to the questionnaire survey page by scanning the web QR code displayed on the device after the temperature measurement is passed.

    The questionnaire survey questions can be set in the software background, and up to 5 questions can be set to learn more about visitors other than temperature, such as surveying the visitor’s recent physical condition, recent travel history, etc.
    The new software makes personnel management more rigorous and cautious, greatly guarantees personnel safety, and effectively prevents the spread of epidemic.


    Face Recognition Thermometer Scanner Kiosk Application on the School and the College Reopen with hand sanitizer display

Connect with an expert
Kindly fill in the below form, product expert will contact with you soon.
  • Name*
  • Email*
  • WhatsApp
  • Country
  • Content:*

See all Specs

  • Panel
    1. Panel Size

      8 inch diagonal

      Panel Resolution

      800 x 1280

    2. Panel brightness

      400 nits

      Screen ratio

      10 : 16

    3. Contrast

      800 : 1

  • System
    1. CPU

      RK 3288

      RAM

      2 GB

    2. Memory/Storage

      8 GB

      SD card

      Do not support

    3. Operation system

      Android 7.1.2

  • Face Recognition
    1. Camera

      200 W,Binocular Wide Motion Camera,Led and infrared dual fill lamp

  • Infrared Thermal Sensor
    1. Heimannsensor

      HTS L-Series

      Melexis

      Far infrared thermal sensor array (32x24 RES) MLX90640

  • Assemble Parts
    • Face Recognition Temperature Measurement Terminal-8 Inch
      Overall
    • Face Recognition Temperature Measurement Terminal-8 Inch
      Screen
    • Face Recognition Temperature Measurement Terminal-8 Inch
      Screen
    • Face Recognition Temperature Measurement Terminal-8 Inch
      Element
    • Face Recognition Temperature Measurement Terminal-8 Inch
      Camera
    • Face Recognition Temperature Measurement Terminal-8 Inch
      Temperature sensor camera
    • Face Recognition Temperature Measurement Terminal-8 Inch

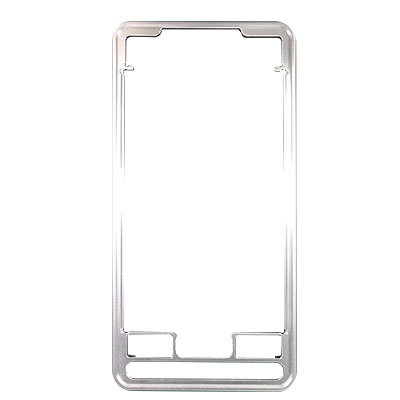

      Frame
    • Face Recognition Temperature Measurement Terminal-8 Inch
      Back cover
  • Production Line Picture
    • YXD-F8 factory picture-YXD-F8-1
      YXD-F8 factory picture-YXD-F8
    • YXD-F8 factory picture-YXD-F8-
      YXD-F8 factory picture-YXD-F8
    • YXD-F8 factory picture-YXD-F8
      YXD-F8 factory picture-YXD-F8
  • Stand Accessories
    • Wall mount for YXD-F8
      Wall mount
    • Floor Standing Stand-B-YXD-F8
      Floor Standing Stand-B
    • Adjustable Bracket
    • Face Recognition Temperature Measurement Terminal-8 Inch
      Child support
    • Face Recognition Temperature device access control scanner
      Desktop Vertical
    • Face Recognition Temperature Measurement Terminal-8 Inch
      Desktop Vertical
    • Face Recognition Temperature Measurement Terminal-8 Inch
      Face Recognition Temperature Measurement Terminal-8 Inch
    • Face Recognition Temperature Measurement Terminal-8 Inch
      Bracket
    • Hand sanitizer container
      Hand sanitizer container
Download
  • MIPS smart pass management platform user manual v 2.5.017
    2020-07-29 4655258kb Downloads:432
  • face recognition HD photo(YXD-F8)
    2020-07-03 856561kb Downloads:323
  • Floor Stand Children style Size-CAD
    2020-06-02 91717kb Downloads:145
  • Floor Standing -B size-CAD
    2020-06-02 65619kb Downloads:125
  • Floor Stand Adult style Size-CAD
    2020-06-02 101138kb Downloads:152
  • Desk top style Size-CAD
    2020-06-02 48653kb Downloads:166
  • YXD-F8 manual-wall mount
    2020-05-13 398986kb Downloads:305
  • YXD-F8 manual-floor standing
    2020-05-13 428368kb Downloads:349
  • YXD-F8-Face Recognition Temperature-8inch-SPEC
    2020-04-23 671278kb Downloads:865
